Ukko
Ukko
Colors

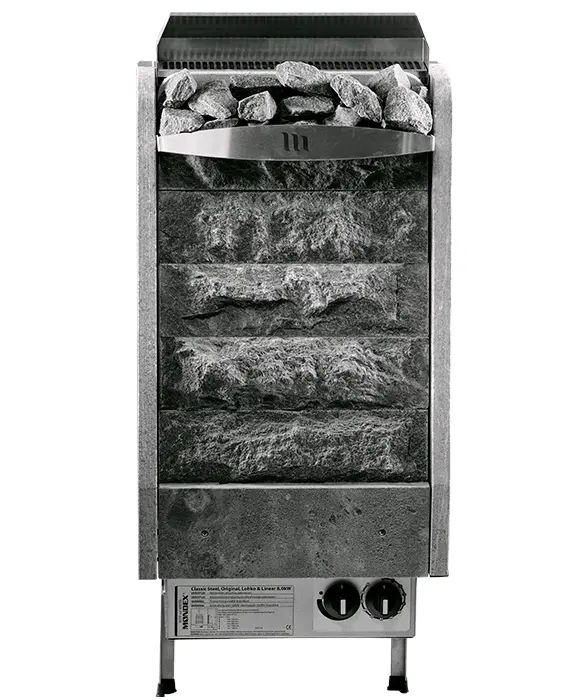

Mondex Ukko brings the Finnish bedrock – soapstone – to your sauna. The combination of rough and smooth soapstone emphasises the natural beauty of the stones. At the same time, it delivers moist, oxygen-rich baths every time.
This soapstone stove is a wall-mounted floor stove. As the legs of the stove bear its weight, there is no weight load on the wall. This leaves more space for additional sauna benches.
Mondex Ukko is available in two different power ratings, allowing it to be used in both smaller and larger saunas. The Ukko stove has an easy-to-use, traditional mechanical control.
Key features
- The Ukko is mounted directly against the wall; no safety distance is required behind the stove.
- The operating switches can easily be adjusted to left- or right-handed or frontal configuration.
- The stove can also be flush-mounted into the bench structure using a mounting flange.
- The heat of the soapstone stove is always humid and soft, even in longer sessions.
Specifications
Electrical specifications
Voltage | 3N—400V |
Fuse | 3×10 A |
Conductor | 5×1,5S |
Sauna dimensions
Volume (m³) | 5—8 |
Heater dimensions
Width (mm) | 420 |
Height (mm) | 750 |
Depth (mm) | 250 |
Adjustable support feet (mm) | 150 |
Heater weight
Total weight (kg) | 50 |
Rock weight (kg) | 41 |
Minimum safe distance
Front (mm) | 200 |
Side (mm) | 70 |
Top (mm) | 900 |
Minimum room height (mm) | 1900 |
Electrical specifications
Voltage | 3N—400V |
Fuse | 3×16 A |
Conductor | 5×2,5S |
Sauna dimensions
Volume (m³) | 7—12 |
Heater dimensions
Width (mm) | 420 |
Height (mm) | 850 |
Depth (mm) | 300 |
Adjustable support feet (mm) | 150 |
Heater weight
Total weight (kg) | 65 |
Rock weight (kg) | 55 |
Minimum safe distance
Front (mm) | 200 |
Side (mm) | 100 |
Top (mm) | 900 |
Minimum room height (mm) | 1900 |
Accessories
Flush Mount Flange, Ukko
Flush mount flange, brushed steel.
Interior width 44,5 cm, exterior width 57.5 cm.
Aperture size required: width 51,3 cm, depth 34,5 cm.
Flush Mount Flange, Ukko
Flush mount flange, black.
Interior width 44,5 cm, exterior width 57.5 cm.
Aperture size required: width 51,3 cm, depth 34,5 cm.
